Mage_Adminhtml_Block_Dashboard_Graph Class Reference

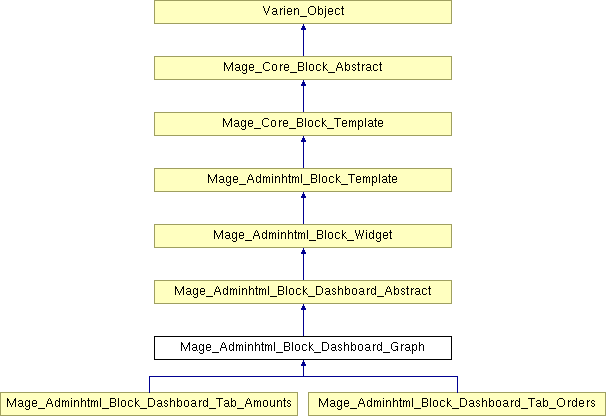

Inheritance diagram for Mage_Adminhtml_Block_Dashboard_Graph:

List of all members.

Public Member Functions
	__construct ()
	setDataRows ($rows)
	addSeries ($seriesId, array $options)
	getSeries ($seriesId)
	getAllSeries ()
	getChartUrl ($directUrl=true)
	setAxisLabels ($axis, $labels)
	setHtmlId ($htmlId)
	getHtmlId ()
Public Attributes
const	API_URL = 'http://chart.apis.google.com/chart'
Protected Member Functions
	_getTabTemplate ()
	getRowsData ($attributes, $single=false)
	_getPow ($number)
	getWidth ()
	getHeight ()
Protected Attributes
	$_allSeries = array()
	$_axisLabels = array()
	$_axisMaps = array()
	$_dataRows = array()
	$_simpleEncoding = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789'
	$_extendedEncoding = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789-.'
	$_width = '587'
	$_height = '300'
	$_encoding = 'e'
	$_htmlId = ''

---

Detailed Description

Definition at line 35 of file Graph.php.

---

Constructor & Destructor Documentation

__construct

(

)

Constructor

By default is looking for first argument as array and assignes it as object attributes This behaviour may change in child classes

Reimplemented from Varien_Object.

Reimplemented in Mage_Adminhtml_Block_Dashboard_Tab_Amounts, and Mage_Adminhtml_Block_Dashboard_Tab_Orders.

Definition at line 55 of file Graph.php.

    {
        parent::__construct();
        $this->setTemplate('dashboard/graph.phtml');
    }

---

Member Function Documentation

_getPow

(

$

number

)

[protected]

Definition at line 375 of file Graph.php.

    {
        $pow = 0;
        while ($number >= 10) {
            $number = $number/10;
            $pow++;
        }
        return $pow;
    }

_getTabTemplate

(

)

[protected]

Definition at line 61 of file Graph.php.

    {
        return 'dashboard/graph.phtml';
    }

addSeries	(	$	seriesId,
		array $	options
	)

Definition at line 71 of file Graph.php.

    {
        $this->_allSeries[$seriesId] = $options;
    }

getAllSeries

(

)

Definition at line 85 of file Graph.php.

    {
        return $this->_allSeries;
    }

getChartUrl

(

$

directUrl = true

)

setting skip step

skipping some x labels for good reading

Format date

Definition at line 90 of file Graph.php.

    {
        $params = array(
            'cht' => 'lc',
            'chf' => 'bg,s,f4f4f4|c,lg,90,ffffff,0.1,ededed,0',
            'chm' => 'B,f4d4b2,0,0,0',
            'chco' => 'db4814'
        );

        $this->_allSeries = $this->getRowsData($this->_dataRows);

        foreach ($this->_axisMaps as $axis => $attr){
            $this->setAxisLabels($axis, $this->getRowsData($attr, true));
        }

        $gmtOffset = Mage::getSingleton('core/date')->getGmtOffset();

        list ($dateStart, $dateEnd) = Mage::getResourceModel('reports/order_collection')
            ->getDateRange($this->getDataHelper()->getParam('period'), '', '', true);

        $dates = array();
        $datas = array();

        while($dateStart->compare($dateEnd) < 0){
            switch ($this->getDataHelper()->getParam('period')) {
                case '24h':
                    $d = $dateStart->toString('yyyy-MM-dd HH:00');
                    $dateStart->addHour(1);
                    break;
                case '7d':
                case '1m':
                    $d = $dateStart->toString('yyyy-MM-dd');
                    $dateStart->addDay(1);
                    break;
                case '1y':
                case '2y':
                    $d = $dateStart->toString('yyyy-MM');
                    $dateStart->addMonth(1);
                    break;
            }
            foreach ($this->getAllSeries() as $index=>$serie) {
                if (in_array($d, $this->_axisLabels['x'])) {
                    $datas[$index][] = (float)array_shift($this->_allSeries[$index]);
                } else {
                    $datas[$index][] = 0;
                }
            }
            $dates[] = $d;
        }

        /**
         * setting skip step
         */
        if (count($dates) > 8 && count($dates) < 15) {
            $c = 1;
        } else if (count($dates) >= 15){
            $c = 2;
        } else {
            $c = 0;
        }
        /**
         * skipping some x labels for good reading
         */
        $i=0;
        foreach ($dates as $k => $d) {
            if ($i == $c) {
                $dates[$k] = $d;
                $i = 0;
            } else {
                $dates[$k] = '';
                $i++;
            }
        }

        $this->_axisLabels['x'] = $dates;
        $this->_allSeries = $datas;

        //Google encoding values
        if ($this->_encoding == "s") {
            // simple encoding
            $params['chd'] = "s:";
            $dataDelimiter = "";
            $dataSetdelimiter = ",";
            $dataMissing = "_";
        } else {
            // extended encoding
            $params['chd'] = "e:";
            $dataDelimiter = "";
            $dataSetdelimiter = ",";
            $dataMissing = "__";
        }

        // process each string in the array, and find the max length
        foreach ($this->getAllSeries() as $index => $serie) {
            $localmaxlength[$index] = sizeof($serie);
            $localmaxvalue[$index] = max($serie);
            $localminvalue[$index] = min($serie);
        }

        if (is_numeric($this->_max)) {
            $maxvalue = $this->_max;
        } else {
            $maxvalue = max($localmaxvalue);
        }
        if (is_numeric($this->_min)) {
            $minvalue = $this->_min;
        } else {
            $minvalue = min($localminvalue);
        }

        $maxlength = max($localmaxlength);
        if ($minvalue >= 0 && $maxvalue >= 0) {
            $miny = 0;
            if ($maxvalue > 10) {
                $p = pow(10, $this->_getPow($maxvalue));
                $maxy = (ceil($maxvalue/$p))*$p;
                $yLabels = range($miny, $maxy, $p);
            } else {
                $maxy = ceil($maxvalue+1);
                $yLabels = range($miny, $maxy, 1);
            }
            $yrange = $maxy;
            $yorigin = 0;
        }

        $chartdata = array();

        foreach ($this->getAllSeries() as $index => $serie) {
            $thisdataarray = $serie;
            if ($this->_encoding == "s") {
                // SIMPLE ENCODING
                for ($j = 0; $j < sizeof($thisdataarray); $j++) {
                    $currentvalue = $thisdataarray[$j];
                    if (is_numeric($currentvalue)) {
                        $ylocation = round((strlen($this->_simpleEncoding)-1) * ($yorigin + $currentvalue) / $yrange);
                        array_push($chartdata, substr($this->_simpleEncoding, $ylocation, 1) . $dataDelimiter);
                    } else {
                        array_push($chartdata, $dataMissing . $dataDelimiter);
                    }
                }
                // END SIMPLE ENCODING
            } else {
                // EXTENDED ENCODING
                for ($j = 0; $j < sizeof($thisdataarray); $j++) {
                    $currentvalue = $thisdataarray[$j];
                    if (is_numeric($currentvalue)) {
                        if ($yrange) {
                         $ylocation = (4095 * ($yorigin + $currentvalue) / $yrange);
                        } else {
                          $ylocation = 0;
                        }
                        $firstchar = floor($ylocation / 64);
                        $secondchar = $ylocation % 64;
                        $mappedchar = substr($this->_extendedEncoding, $firstchar, 1) . substr($this->_extendedEncoding, $secondchar, 1);
                        array_push($chartdata, $mappedchar . $dataDelimiter);
                    } else {
                        array_push($chartdata, $dataMissing . $dataDelimiter);
                    }
                }
                // ============= END EXTENDED ENCODING =============
            }
            array_push($chartdata, $dataSetdelimiter);
        }
        $buffer = implode('', $chartdata);

        $buffer = rtrim($buffer, $dataSetdelimiter);
        $buffer = rtrim($buffer, $dataDelimiter);
        $buffer = str_replace(($dataDelimiter . $dataSetdelimiter), $dataSetdelimiter, $buffer);

        $params['chd'] .= $buffer;

        $labelBuffer = "";
        $valueBuffer = array();
        $rangeBuffer = "";

        if (sizeof($this->_axisLabels) > 0) {
            $params['chxt'] = implode(',', array_keys($this->_axisLabels));
            $indexid = 0;
            foreach ($this->_axisLabels as $idx=>$labels){
                if ($idx == 'x') {
                    /**
                     * Format date
                     */
                    foreach ($this->_axisLabels[$idx] as $_index=>$_label) {
                        if ($_label != '') {
                            switch ($this->getDataHelper()->getParam('period')) {
                                case '24h':
                                    $this->_axisLabels[$idx][$_index] = $this->formatTime($_label, 'short', false);
                                    break;
                                case '7d':
                                case '1m':
                                    $this->_axisLabels[$idx][$_index] = $this->formatDate($_label);
                                    break;
                                case '1y':
                                case '2y':
                                    $formats = Mage::app()->getLocale()->getTranslationList('datetime');
                                    $format = isset($formats['yyMM']) ? $formats['yyMM'] : 'MM/yyyy';
                                    $format = str_replace(array("yyyy", "yy", "MM"), array("Y", "y", "m"), $format);
                                    $this->_axisLabels[$idx][$_index] = date($format, strtotime($_label));
                                    break;
                            }
                        } else {
                            $this->_axisLabels[$idx][$_index] = '';
                        }

                    }

                    $tmpstring = implode('|', $this->_axisLabels[$idx]);

                    $valueBuffer[] = $indexid . ":|" . $tmpstring;
                    if (sizeof($this->_axisLabels[$idx]) > 1) {
                        $deltaX = 100/(sizeof($this->_axisLabels[$idx])-1);
                    } else {
                        $deltaX = 100;
                    }
                } else if ($idx == 'y') {
                    $valueBuffer[] = $indexid . ":|" . implode('|', $yLabels);
                    if (sizeof($yLabels)-1) {
                        $deltaY = 100/(sizeof($yLabels)-1);
                    } else {
                        $deltaY = 100;
                    }
                    // setting range values for y axis
                    $rangeBuffer = $indexid . "," . $miny . "," . $maxy . "|";
                }
                $indexid++;
            }
            $params['chxl'] = implode('|', $valueBuffer);
        };

        // chart size
        $params['chs'] = $this->getWidth().'x'.$this->getHeight();

        if (isset($deltaX) && isset($deltaY)) {
            $params['chg'] = $deltaX . ',' . $deltaY . ',1,0';
        }

        // return the encoded data
        if ($directUrl) {
            $p = array();
            foreach ($params as $name => $value) {
                $p[] = $name . '=' .urlencode($value);
            }
            return self::API_URL . '?' . implode('&', $p);
        } else {
            $params = array('ga' => urlencode(base64_encode(serialize($params))));
            return $this->getUrl('*/*/tunnel', $params);
        }
    }

getHeight

(

)

[protected]

Definition at line 392 of file Graph.php.

    {
        return $this->_height;
    }

getHtmlId

(

)

Reimplemented from Mage_Adminhtml_Block_Widget.

Definition at line 369 of file Graph.php.

    {
        return $this->_htmlId;
    }

getRowsData	(	$	attributes,
		$	single = false
	)			[protected]

Definition at line 340 of file Graph.php.

    {
        $items = $this->getCollection()->getItems();
        $options = array();
        foreach ($items as $item){
            if ($single) {
                $options[] = $item->getData($attributes);
            } else {
                foreach ((array)$attributes as $attr){
                    $options[$attr][] = $item->getData($attr);
                }
            }
        }
        return $options;
    }

getSeries

(

$

seriesId

)

Definition at line 76 of file Graph.php.

    {
        if (isset($this->_allSeries[$seriesId])) {
            return $this->_allSeries[$seriesId];
        } else {
            return false;
        }
    }

getWidth

(

)

[protected]

Definition at line 386 of file Graph.php.

    {
        return $this->_width;
    }

setAxisLabels	(	$	axis,
		$	labels
	)

Definition at line 357 of file Graph.php.

    {
        $this->_axisLabels[$axis] = $labels;
    }

setDataRows

(

$

rows

)

Definition at line 66 of file Graph.php.

    {
        $this->_dataRows = (array)$rows;
    }

setHtmlId

(

$

htmlId

)

Definition at line 363 of file Graph.php.

    {
        $this->_htmlId = $htmlId;
    }

---

Member Data Documentation

$_allSeries = array() [protected]

Definition at line 37 of file Graph.php.

$_axisLabels = array() [protected]

Definition at line 38 of file Graph.php.

$_axisMaps = array() [protected]

Definition at line 39 of file Graph.php.

$_dataRows = array() [protected]

Definition at line 41 of file Graph.php.

$_encoding = 'e' [protected]

Definition at line 51 of file Graph.php.

$_extendedEncoding = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789-.' [protected]

Definition at line 44 of file Graph.php.

$_height = '300' [protected]

Definition at line 49 of file Graph.php.

$_htmlId = '' [protected]

Definition at line 53 of file Graph.php.

$_simpleEncoding = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789' [protected]

Definition at line 43 of file Graph.php.

$_width = '587' [protected]

Definition at line 48 of file Graph.php.

const API_URL = 'http://chart.apis.google.com/chart'

Definition at line 46 of file Graph.php.

---

The documentation for this class was generated from the following file:

• app/code/core/Mage/Adminhtml/Block/Dashboard/Graph.php
